FINAL PATTERN

PRODUCT OUTSIDE EVENT

the chair is branding for meeting outdoor crowd people, because light weight, strong structure, easy to fold.

In public, transport, on walk side, in the park for snap break and waiting.

PRODUCT FOR EVENT

Branding for Design made trade exihibition

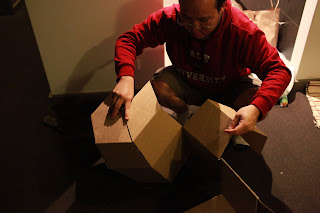

FOLD INSTRUCTION

PROBLEM SOVLED

:) :):) :):) :):) :):) :):) :):) :):) :):) :):) :)

THE THICKNESS PROBLEM ON XANITA BOARD

DESIGN MAKE TRADE INTERIOR PLAN ANALYSIS

This walk line is the shortest way to see all design shops, but its seem to be very long and people could get very tired when they walk.

Green rectangle is the break area. one for eating time and other for seating, watching screen.

Would you walk back to the break area to take rest. or you keep going to next area.
+ If you walk back, its not comfortable to see the exibition.
+ If you walk forward, it will make you tired and not convenient to see the exhibition too.

Green circle is my xanita chair locate at each 6meter, appropriate 1 chair/2 shops. it will make the walk way energy cool down, and more comfortable for people to enjoy to see exhibition.

DESIGN MADE TRADE

x-board concept 1:1

the x-board model 1:1 developed by concept 2. its quiet similar, but the final bigger on the top and a bit low down on seat area. same as folded , but locking not strong as concept 2.

CONCEPT DEVELOPMENT 3

The third concept is with angled seating area, making it more of a relax chair and highly comfortable, with the armrests and all. The folding pattern took a while to figure out and experimented with, let alone the locking system, but pulled it off in the end. The locking system was a bit difficult to do as some of it are to be placed in tight spaces somewhere in the fold, making it very hard to squezze in the lock.

CONCEPT DEVELOPMENT 2

One thing about this concept is the flat pattern which does not look confusing but the end product is nice. The fold is simple, with the flaps all go around interlocking each other before they all end up at certain point as to lock the structure. One thing about this stool is that, it’s quite rigid and real strong, although it looks really stiff.

CONCEPT DEVELOPMENT 1

My first concept is a basic squarish stool, which is compact and can be carried around easily. The locking system resides at the base of the stool, with two structures connects together at either sides of the stool, via slotting mechanism. As can be seen from the flat pattern as well, that it is simple and easy to produce but still is highly functional, and more importantly, due to the structural at base, i assume it can hold massive weight.

My other idea with this concept is to express space and minimalistic design, with plain surfaces on the stool, allowing graphic art or print to be placed on it.

ESQUISSE FOUR

My idea is to use locking system in which all the elements involved is interlocked and intersected with each other and maybe, something like, one thing overlays another. I found that it worked effectively, such a simple system, consists of 4 similar flaps shapes that is assembled with interlocking system. I always imagined it to be something like a web, which is very closely and strongly connected.
